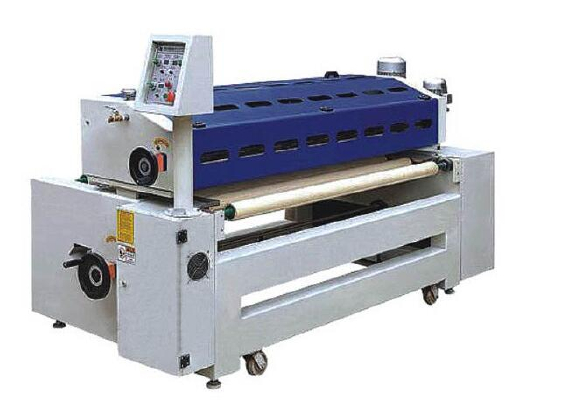

Product introduction:

Characteristic：

- this equipment is mainly suitable for flat plate, plate, flat door, sheet metal and wood blinds, roller coating paint;

- this machine to replace the traditional painting, time saving, high efficiency, good environmental protection, can save 48.8% relative spraying paint;

In the conveyer belt and PU wheel, independent motor frequency conversion measurement gloriole, processing is more accurate;

The surface of the product - the machine processed smooth, good plumpness, and no paint, with the coating effect almost the same but the paint thickness is greatly reduced;

- coating wheel disassembling convenient, accurate positioning, high use count table, be aware of;

Rolling wheel - paint using imported raw materials made in Japan, solvent ink, good effect;

In the configuration of imported oil pumping pump, the paint can be recycled through the tank, almost no waste;

Equipment parameters:

Equipment type YH-L760 YH-L1100 YH-L1420

Working width 650MM 1000MM 1320MM

Conveying speed 0-30M/MIN 0-30M/MIN 0-30M/MIN

Transmission power 0.75KW 0.75KW 1.5KW

Coating wheel power 0.75KW 0.75KW 1.5KW

Coating thickness 0.003-0.2MM 0.003-0.2MM 0.003-0.2MM

Using power 220V/380V50HZ 220V/380V50HZ 220V/380V50
