UV curing machine |UV light solid machine | UV |UV equipment, suitable for use in a variety of pipeline installation

Application of optical fiber, optical, electronic, medical adhesive glue, glue coating, UV ink curing UV, low temperature, stable performance.

First, the scope of the application of this machine:

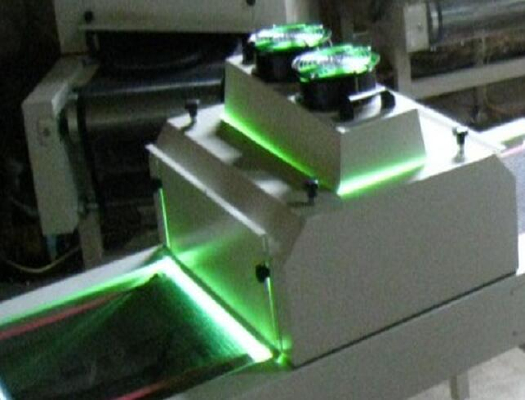

This is an installation type UV curing device, widely installed on the pipeline with a UV cable section for curing glue, PCB glue, electronic circuit board, electronic plastic shell UV curing surface paint coating; used in curing electronic elements, liquid crystal plates, plastic sealed terminals, mobile phone components, plastic components and adhesive bonding LCD etc.; the device has small volume, light weight, excellent workmanship, easy to move.

Two, the main technical parameters:

1, the overall size: 660 x 455mm (L * W * H);

2, feed length: mm;

3, out of the material length: mm;

4, feed height: 440 100mm;

5, feed mouth height: 10-120mm;

6, feeding width: 400mm;

8, lamp power: 3KW/1 branch, lamp irradiation height can be manually adjusted;

9, wave crest: 365nm;

10, lamp irradiation width: 400mm;

12, exhaust fan: 38W, 2;

15, decorative form: spray;

16, power: single phase 220V;

17, net weight: 35kg;

18, gross weight: 40kg
