Characteristic：

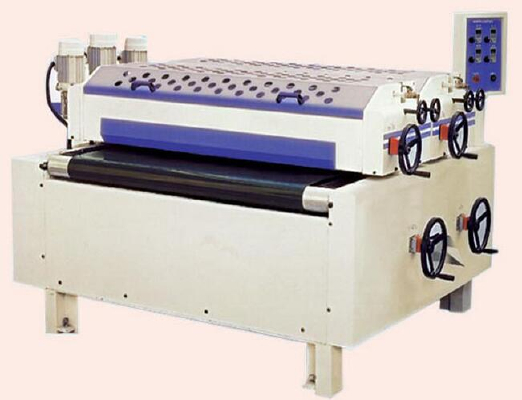

- this machine is designed for flooring, furniture, window blinds, flat panel, surface paint and special design, the machine processed by the film surface smooth, good plumpness, and no paint, with the coating effect almost the same but the topcoat thickness is greatly reduced, only about 0.02-0.03mm thick. Compared with 6-25g/M2 coating is 80-180g/m2, this machine is expensive for cost saving tool.

In the conveyor belt and silicon rubber wheel, electric wheel alone by the imported motor, inverter, paint film thickness is more smooth, precise control.

- coating wheel uses fast detachable type, convenient replacement, and precise positioning, height using counting meter readings, with plates of different thickness, more aware of the natural operation more convenient.

In the lightning round, depending on the situation and the scraper can choose different methods and makes the operation more flexible.

- equipped with 5 inverters or optional PLC, each can be used alone to process more accurate.

Equipment parameters:

Model

YH-L630

YH-L1000

YH-L1300

Effective coating width

630mm

1000mm

1300mm

Feed rate

5-30m/min

5-30m/min

5-30m/min

Surface wheel size

Of 205 * 750mm

Of 205 * 1150mm

Of 245 * 1450mm

Transmission power

0.75kw

0.75kw

105kW

Coating wheel power

0.75KW * 2

0.75KW * 2

1.5KW * 2

Electro optical wheel size

Of 130 * 750mm

Of 130 * 1150mm

Of 130 * 1450mm

Electro optical wheel power

0.375kw * 2

0.375kw * 2

0.75KW * 2

Heating power

3kw

3kw

3kw

Voltage

380V

380V

380V

Total power

6kw

6kw

9kw

Size mm

1600 * 1780 * 1300

1600 * 2150 * 1300

1600 * 2450 * 1300

Net weight

1100kg

1300kg

1500kg
